Puzzle plan

Preview the selected puzzle and continue when it looks right.

Planning preview ready

Source image: E840372B-4502-491B-863C-CFAA1FA2DD0C.png
Finished puzzle: 5 x 7
Piece option: 20 pieces
Piece fit: Standard
Expected pieces: 20
Planned pieces: 20
Sheets needed: 1
Plan result: Planning preview ready
Final files: Preview saved

Plan ready. Review the preview, then continue with final files when they are available for this puzzle.

Final files

Print sheet and laser alignment SVG for this puzzle.

Preview saved

Print and laser downloads are not generated for this puzzle setup yet.

Technical details

Sheeted finished-puzzle plan ready

Planning JSON and private WebP previews are available. Final print PDFs, alignment SVGs, cut SVGs, ZIP packets, Redis jobs, public downloads, and calibration changes remain deferred.

Source Image

sheeted finished puzzle plan ready

Job ID: lps_20260518_181550_ac495b0c4cd6
Original filename: E840372B-4502-491B-863C-CFAA1FA2DD0C.png
Stored path: uploads/lps_20260518_181550_ac495b0c4cd6/source.png
Image type: image/png
Dimensions: 1536 x 1024 px
File size: 2.86 MB
SHA-256: 0997887da37ccb919f923f75284cec60fd3e813385545b403ee12c3f3575ede5
Created: 2026-05-18T18:15:50Z

Normalized Source

Stored path: jobs/lps_20260518_181550_ac495b0c4cd6/normalized/source.png
Dimensions: 1536 x 1024 px
Mode: RGB
Alpha preserved: false
Orientation applied: false
Preview size: 1400 x 933 px

Settings Snapshot

machine preset	xtool_s1_40w
printer preset	epson_et_8500
page preset	us_letter
puzzle size	5x7_in
columns	3
rows	4
image fit	crop_to_fill
border type	straight
bleed mm	1.5
piece spacing mm	4
kerf estimate mm	0.16
target clearance mm	0.04
registration marks	true
cut guides on print	false
seed	1001

Source Preview

This is the normalized source preview only. Manufacturing exports are not generated yet.

Draft Files

manifest.json Written

generation-plan.json Written

source-metadata.json Written

normalized-source.json Written

source-preview.webp Written

exports/sheeted-plan-v1/manifest.json Written

exports/sheeted-plan-v1/all-sheets-preview.webp Written

proof-2x2-pieces.json Written

proof-2x2-validation.json Written

layout-proof-2x2.webp Written

proof-2x2-tabs-pieces.json Written

proof-2x2-tabs-validation.json Written

layout-proof-2x2-tabs.webp Written

proof-2x2-tabs-bleed.json Written

proof-2x2-tabs-bleed-validation.json Written

layout-proof-2x2-tabs-bleed.webp Written

print-calibration-letter-600dpi.pdf Written

print-calibration-letter-600dpi.png Written

print-calibration-validation.json Written

svg-scale-square.svg Written

svg-scale-validation.json Written

calibration-measurements.json Deferred

registration-coupon-letter-600dpi.pdf Deferred

registration-coupon-letter-600dpi.png Deferred

registration-coupon.svg Deferred

registration-coupon-validation.json Deferred

registration/local-v2/registration-coupon-local-v2-letter-600dpi.pdf Deferred

registration/local-v2/registration-coupon-local-v2.svg Deferred

registration/local-v2/registration-coupon-local-v2-validation.json Deferred

registration/xy-ladder-v1/registration-xy-ladder-v1-letter-600dpi.pdf Deferred

registration/xy-ladder-v1/registration-xy-ladder-v1.svg Deferred

registration/xy-ladder-v1/registration-xy-ladder-v1-validation.json Deferred

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-letter-600dpi.pdf Deferred

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-alignment.svg Deferred

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-cut-only.svg Deferred

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-validation.json Deferred

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-letter-600dpi.pdf Deferred

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-alignment.svg Deferred

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-cut-only.svg Deferred

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-validation.json Deferred

Layout Proof

Preview-only coordinate proof. This is not a print file, laser SVG, or jigsaw tab/socket proof.

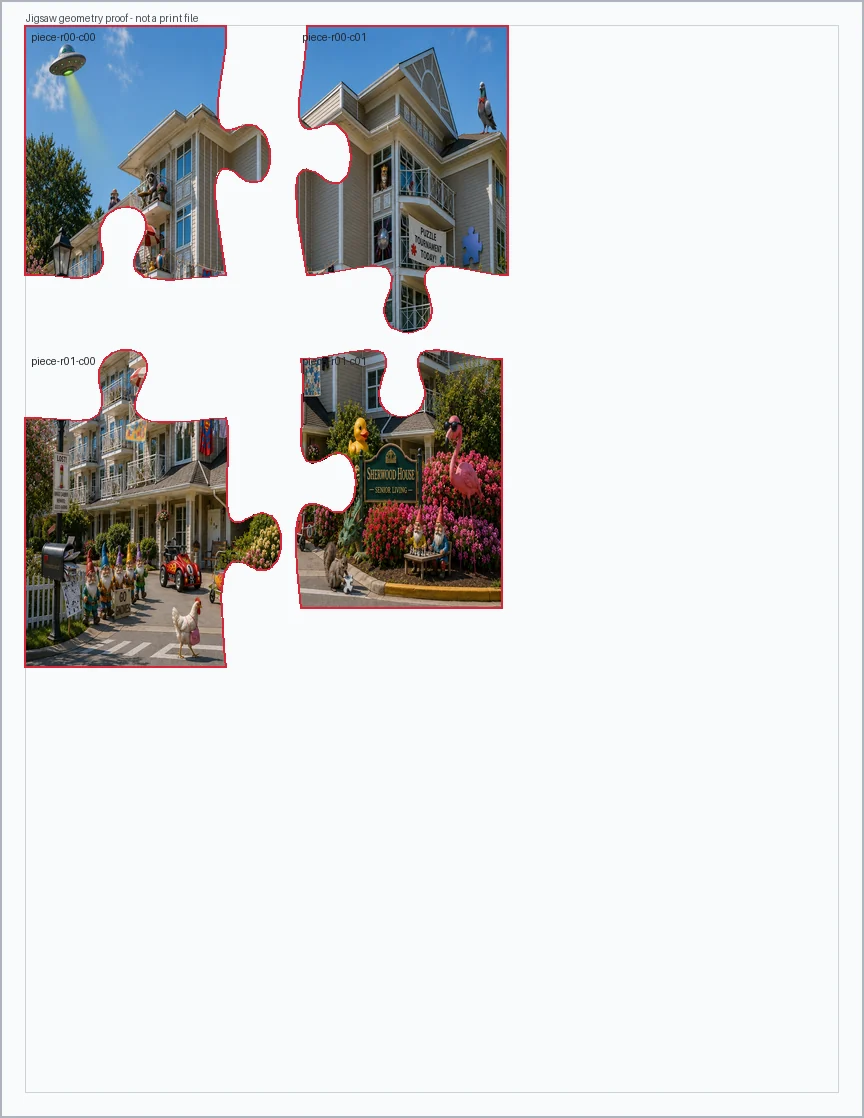

Jigsaw Proof

2x2 jigsaw tab and socket layout proof preview

Preview-only jigsaw geometry proof. This is not a print file, laser SVG, bleed proof, or manufacturing export.

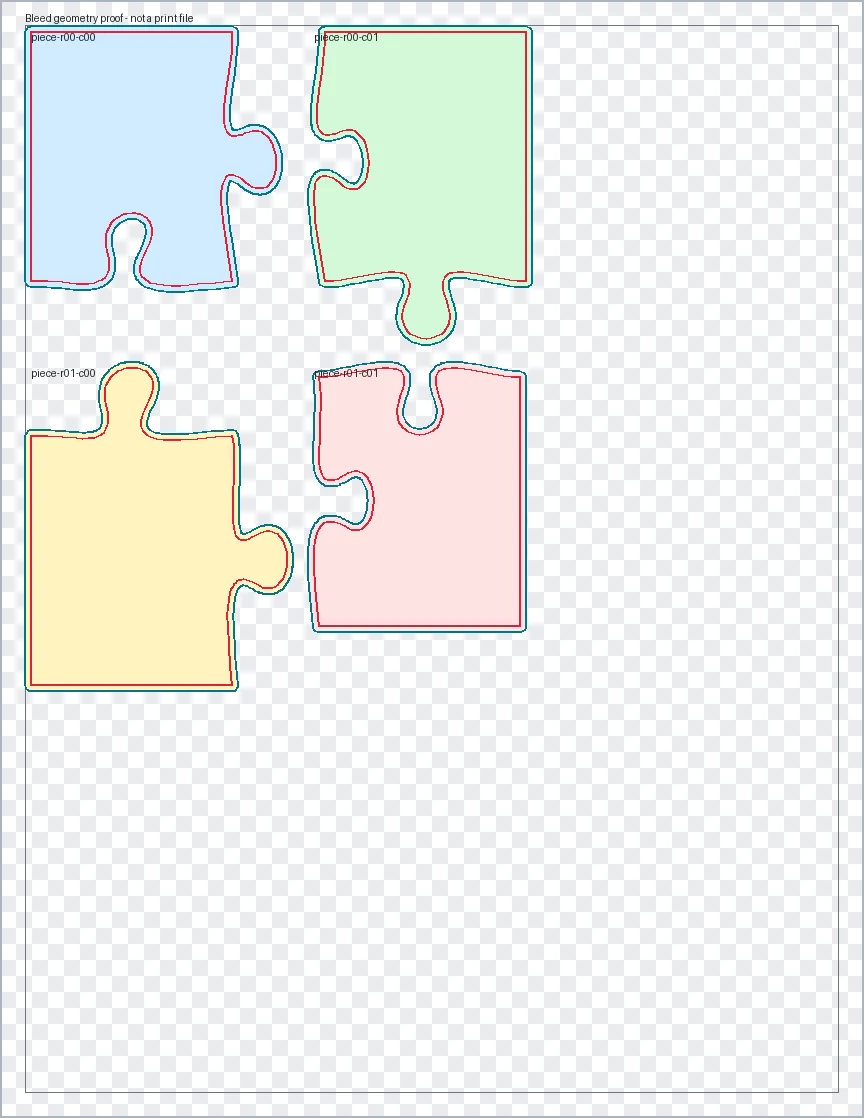

Bleed Proof

Preview-only bleed geometry proof. This is not a print file, laser SVG, artwork bleed render, or manufacturing export.

Print Calibration Proof

Download PDF Download PNG Validation JSON

PDF: jobs/lps_20260518_181550_ac495b0c4cd6/calibration/print-calibration-letter-600dpi.pdf
PNG: jobs/lps_20260518_181550_ac495b0c4cd6/calibration/print-calibration-letter-600dpi.png
PNG size: 5100 x 6600 px
DPI: 600
Validation: 9 / 9 checks passed
Manual status: pending owner measurement

Print at 100% / actual size with fit-to-page disabled, then measure the two 100 mm scale bars. This is not a production puzzle print file.

SVG Scale Proof

Download SVG Validation JSON

SVG: jobs/lps_20260518_181550_ac495b0c4cd6/calibration/svg-scale-square.svg
Expected import: 50 x 50 mm
Validation: 13 / 13 checks passed
Manual status: pending owner measurement

Import this SVG into xTool Creative Space and confirm the square measures 50 mm x 50 mm. This is not a laser cut file for puzzle pieces.

Calibration Measurements

not recorded

Measurement gate unavailable

Print and SVG calibration artifacts must be ready before measurements can be recorded.

Full-Page Registration Coupon

deferred

Registration coupon gated

Passing print and SVG scale measurements are required before the registration coupon can be generated.

Local Registration Coupon

deferred

Local registration coupon gated

Generate the full-page registration coupon before the local cut-area diagnostic.

XY Calibration Ladder

deferred

XY ladder gated

Generate the local registration coupon before the visual XY calibration ladder.

XY Coarse Grid

deferred

XY coarse grid gated

Generate the XY calibration ladder before the wide coarse grid.

XY Combo Grid

deferred

XY combo grid gated

Generate the XY coarse grid before the combined wide/fine calibration grid.

XY Focused Repeat

deferred

XY focused repeat gated

Generate the XY combo grid before the focused large-target repeat sheet.

XY Focused Repeat Color

deferred

XY focused repeat color gated

Generate the XY focused repeat V1 artifact before the color-assisted readability variant.

2x2 Jigsaw Coupon

deferred

2x2 coupon gated

Record the accepted XY color-vernier V2 result before generating the private jigsaw coupon.

Repeat V2 2x2 Jigsaw Coupon

deferred

Repeat V2 coupon gated

Generate the first private 2x2 jigsaw coupon before creating the current repeat confirmation coupon.

5x7 Owner-Alpha Export

deferred

5x7 export gated

Finish the repeat V2 2x2 coupon and active calibration profile before generating the first 5x7 owner-alpha export.

Compact 5x7 Owner-Alpha Export

deferred

Compact 5x7 export gated

Generate the current 5x7 owner-alpha export before creating the compact material-footprint variant.

5x7 Finished Puzzle - Efficient Print/Cut Layout

deferred

Efficient export gated

Generate the compact 5x7 owner-alpha export before creating the finished-size efficient print/cut layout.

Kerf Fit Coupon

deferred

Kerf coupon gated

Generate the finished-size efficient 5x7 export before creating the material kerf fit coupon.

Historical Repeat V1 2x2 Jigsaw Coupon

deferred

Repeat coupon gated

Generate the first private 2x2 jigsaw coupon before creating a repeat confirmation coupon.

Generation Plan

Units: mm
Page: 215.9 x 279.4 mm
Puzzle: 127 x 177.8 mm
Grid: 3 x 4
Spacing: 4 mm
Bleed: 1.5 mm
Image fit: center_crop_v1
Proof: proof_2x2_rect_v1
Jigsaw proof: proof_2x2_tabs_v1
Bleed proof: bleed_path_proof_v1
Print calibration: print_calibration_proof_v1
SVG scale: svg_scale_square_v1

Geometry Proof

Type: proof_2x2_rect_v1
Pieces: 4
Validation: 36 / 36 checks passed
Preview size: 864 x 1118 px
Geometry SHA-256: 36fba5a453cbbc8eab0e62542ed22d84fe3793065f80894a4cc8d93a6860caf5

Jigsaw Geometry Proof

Type: proof_2x2_tabs_v1
Pieces: 4
Canonical edges: 4
Validation: 91 / 91 checks passed
Flattening: 0.02 mm
Preview size: 864 x 1118 px
Geometry SHA-256: fe05a4de6d31e6792633bb50dee18b2d02e7463f51687e9f73b8f4e5f080447f

Bleed Geometry Proof

Type: bleed_path_proof_v1
Pieces: 4
Bleed: 1.5 mm
Spacing reference: bleed envelope
Validation: 46 / 46 checks passed
Offset: round, closed_polygon
Preview size: 864 x 1118 px
Bleed SHA-256: e77c44a1999bafb52678d0b4051c7b1d33ff03df2c88876e4430af59bea5c755

Artifacts

No exports generated

Production print files, production laser SVGs, and manufacturing output are deferred. Calibration proof downloads are available only in the proof panels above.

Notes

Planning-only sheeted finished-puzzle dry run created. It wrote JSON and WebP previews only. Final print PDFs, alignment SVGs, cut SVGs, ZIP packets, Redis jobs, public downloads, and calibration changes remain deferred.
