Puzzle Plan Review

Review the selected puzzle and continue when it looks right.

Back to Projects

Puzzle plan

Preview the selected puzzle and continue when it looks right.

Ready to plan

Source image: source.jpg
Finished puzzle: Not selected
Piece option: Not selected
Piece fit: Standard
Expected pieces: Not selected
Planned pieces: Not planned
Sheets needed: Not planned
Plan result: Not planned yet
Final files: Final files not ready

Choose setup. Choose the finished puzzle and piece option, then save the setup.

Final files

Print sheet and laser alignment SVG for this puzzle.

Final files not ready

Create a puzzle plan first.

Choose Puzzle Options

Technical details

Bleed geometry proof ready

A private 2x2 bleed envelope proof is available for geometry inspection. Print files, laser SVGs, downloads, Redis enqueue, and worker processing remain deferred.

Source Image

bleed proof ready

Job ID: lps_20260513_030933_574856ddea73
Original filename: source.jpg
Stored path: uploads/lps_20260513_030933_574856ddea73/source.jpg
Image type: image/jpeg
Dimensions: 3300 x 2400 px
File size: 7.46 MB
SHA-256: 58a23660d7ebe1e4bfa5e620883b740059563f6bd69a7123e29aace3fca1539c
Created: 2026-05-13T03:09:33Z

Normalized Source

Stored path: jobs/lps_20260513_030933_574856ddea73/normalized/source.png
Dimensions: 3300 x 2400 px
Mode: RGB
Alpha preserved: false
Orientation applied: false
Preview size: 1400 x 1018 px

Settings Snapshot

machine preset	xtool_s1_40w
printer preset	epson_et_8500
page preset	us_letter
puzzle size	8x10_in
columns	4
rows	5
image fit	crop_to_fill
border type	straight
bleed mm	1.5
piece spacing mm	4
kerf estimate mm	0.16
target clearance mm	0.04
registration marks	true
cut guides on print	false
seed	1001

Source Preview

This is the normalized source preview only. Manufacturing exports are not generated yet.

Draft Files

manifest.json Written

generation-plan.json Written

source-metadata.json Written

normalized-source.json Written

source-preview.webp Written

exports/sheeted-plan-v1/manifest.json Deferred

exports/sheeted-plan-v1/all-sheets-preview.webp Deferred

proof-2x2-pieces.json Written

proof-2x2-validation.json Written

layout-proof-2x2.webp Written

proof-2x2-tabs-pieces.json Written

proof-2x2-tabs-validation.json Written

layout-proof-2x2-tabs.webp Written

proof-2x2-tabs-bleed.json Written

proof-2x2-tabs-bleed-validation.json Written

layout-proof-2x2-tabs-bleed.webp Written

print-calibration-letter-600dpi.pdf Deferred

print-calibration-letter-600dpi.png Deferred

print-calibration-validation.json Deferred

svg-scale-square.svg Deferred

svg-scale-validation.json Deferred

calibration-measurements.json Deferred

registration-coupon-letter-600dpi.pdf Deferred

registration-coupon-letter-600dpi.png Deferred

registration-coupon.svg Deferred

registration-coupon-validation.json Deferred

registration/local-v2/registration-coupon-local-v2-letter-600dpi.pdf Deferred

registration/local-v2/registration-coupon-local-v2.svg Deferred

registration/local-v2/registration-coupon-local-v2-validation.json Deferred

registration/xy-ladder-v1/registration-xy-ladder-v1-letter-600dpi.pdf Deferred

registration/xy-ladder-v1/registration-xy-ladder-v1.svg Deferred

registration/xy-ladder-v1/registration-xy-ladder-v1-validation.json Deferred

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-letter-600dpi.pdf Deferred

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-alignment.svg Deferred

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-cut-only.svg Deferred

registration/xy-coarse-grid-v1/registration-xy-coarse-grid-v1-validation.json Deferred

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-letter-600dpi.pdf Deferred

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-alignment.svg Deferred

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-cut-only.svg Deferred

registration/xy-combo-grid-v1/registration-xy-combo-grid-v1-validation.json Deferred

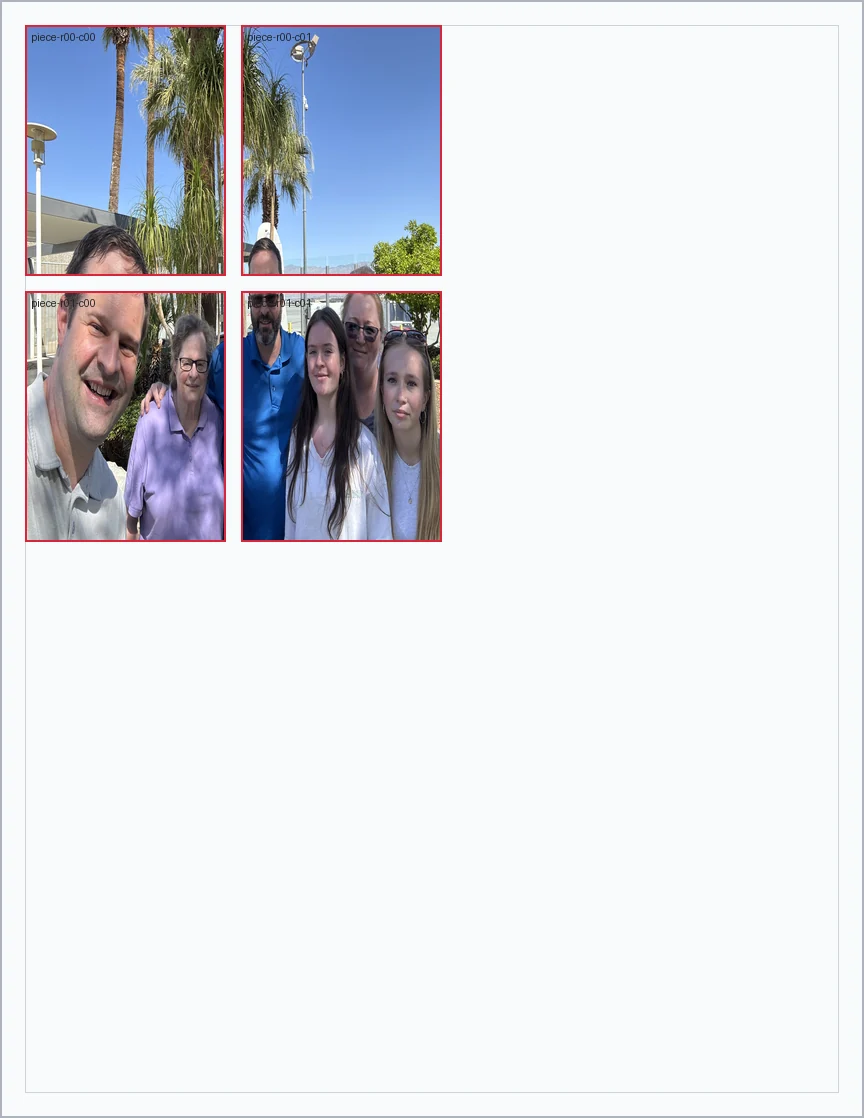

Layout Proof

Preview-only coordinate proof. This is not a print file, laser SVG, or jigsaw tab/socket proof.

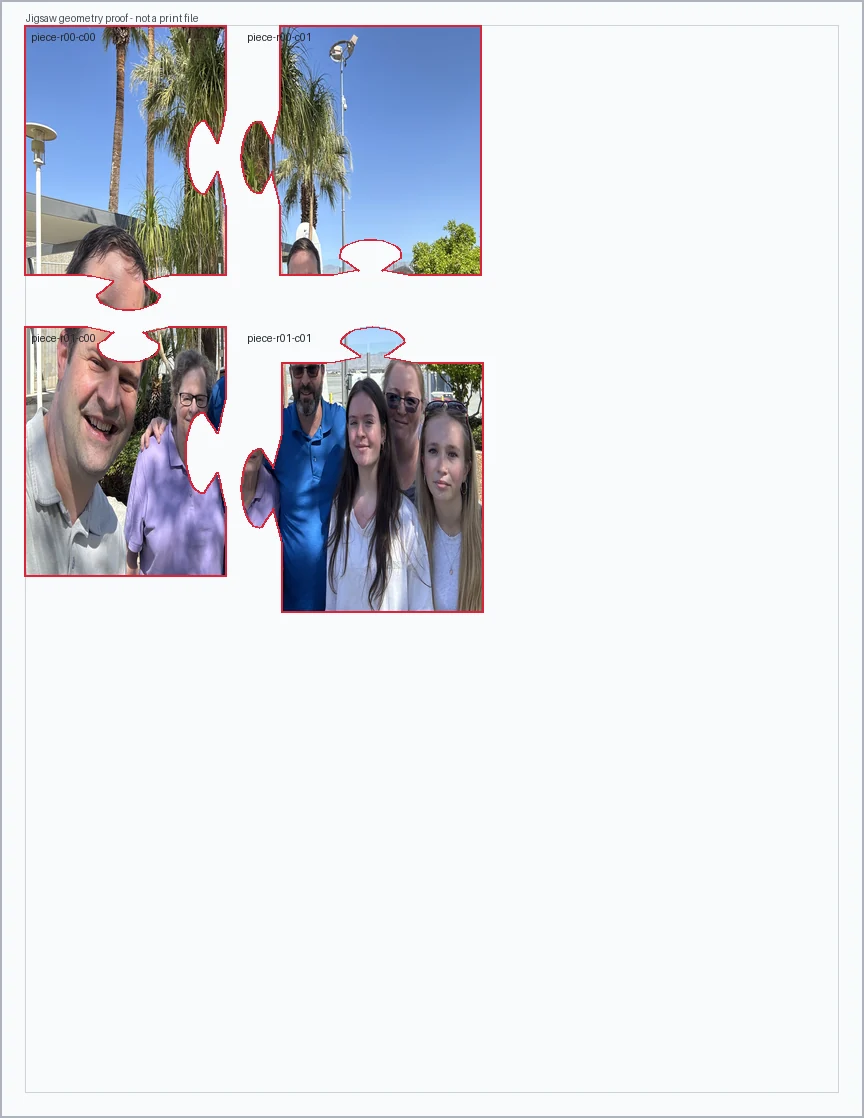

Jigsaw Proof

2x2 jigsaw tab and socket layout proof preview

Preview-only jigsaw geometry proof. This is not a print file, laser SVG, bleed proof, or manufacturing export.

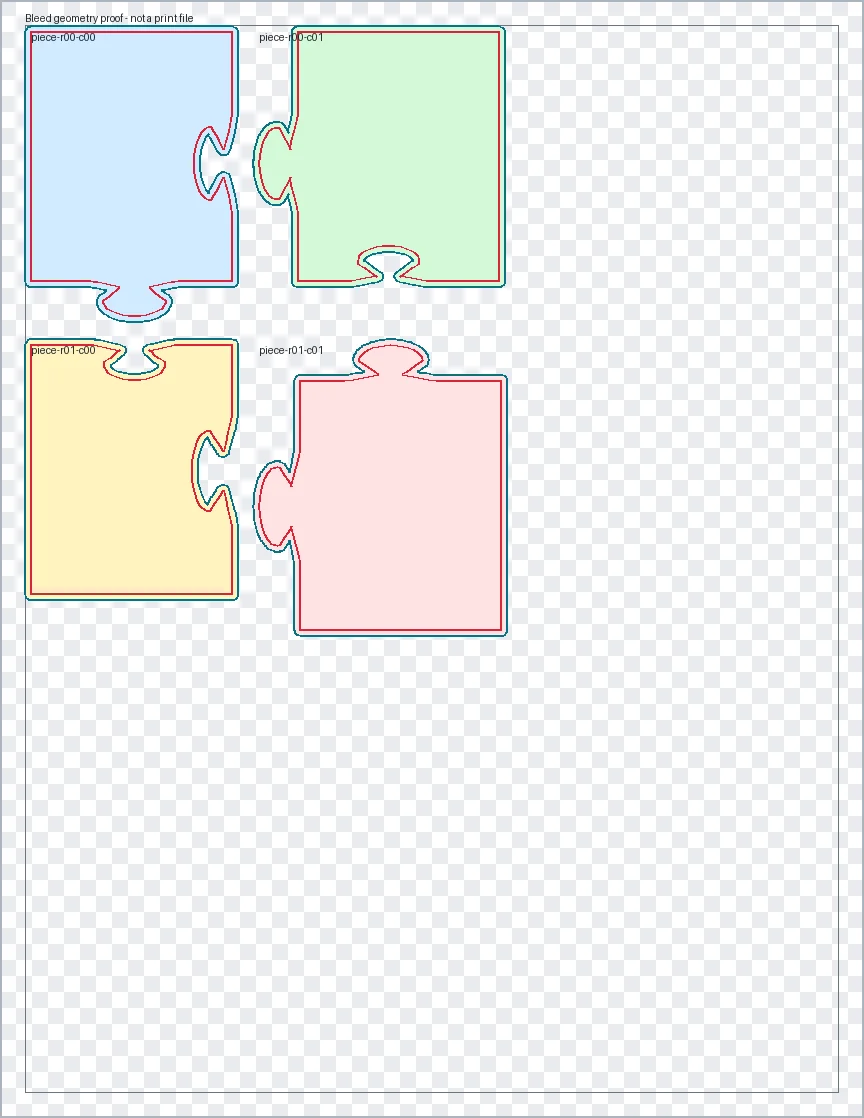

Bleed Proof

Preview-only bleed geometry proof. This is not a print file, laser SVG, artwork bleed render, or manufacturing export.

Print Calibration Proof

No print calibration proof

The print calibration PDF/PNG proof has not been created for this job.

SVG Scale Proof

No SVG scale proof

The SVG scale square proof has not been created for this job.

Calibration Measurements

not recorded

Measurement gate unavailable

Print and SVG calibration artifacts must be ready before measurements can be recorded.

Full-Page Registration Coupon

deferred

Registration coupon gated

Passing print and SVG scale measurements are required before the registration coupon can be generated.

Local Registration Coupon

deferred

Local registration coupon gated

Generate the full-page registration coupon before the local cut-area diagnostic.

XY Calibration Ladder

deferred

XY ladder gated

Generate the local registration coupon before the visual XY calibration ladder.

XY Coarse Grid

deferred

XY coarse grid gated

Generate the XY calibration ladder before the wide coarse grid.

XY Combo Grid

deferred

XY combo grid gated

Generate the XY coarse grid before the combined wide/fine calibration grid.

XY Focused Repeat

deferred

XY focused repeat gated

Generate the XY combo grid before the focused large-target repeat sheet.

XY Focused Repeat Color

deferred

XY focused repeat color gated

Generate the XY focused repeat V1 artifact before the color-assisted readability variant.

2x2 Jigsaw Coupon

deferred

2x2 coupon gated

Record the accepted XY color-vernier V2 result before generating the private jigsaw coupon.

Repeat V2 2x2 Jigsaw Coupon

deferred

Repeat V2 coupon gated

Generate the first private 2x2 jigsaw coupon before creating the current repeat confirmation coupon.

5x7 Owner-Alpha Export

deferred

5x7 export gated

Finish the repeat V2 2x2 coupon and active calibration profile before generating the first 5x7 owner-alpha export.

Compact 5x7 Owner-Alpha Export

deferred

Compact 5x7 export gated

Generate the current 5x7 owner-alpha export before creating the compact material-footprint variant.

5x7 Finished Puzzle - Efficient Print/Cut Layout

deferred

Efficient export gated

Generate the compact 5x7 owner-alpha export before creating the finished-size efficient print/cut layout.

Kerf Fit Coupon

deferred

Kerf coupon gated

Generate the finished-size efficient 5x7 export before creating the material kerf fit coupon.

Historical Repeat V1 2x2 Jigsaw Coupon

deferred

Repeat coupon gated

Generate the first private 2x2 jigsaw coupon before creating a repeat confirmation coupon.

Generation Plan

Units: mm
Page: 215.9 x 279.4 mm
Puzzle: 203.2 x 254 mm
Grid: 4 x 5
Spacing: 4 mm
Bleed: 1.5 mm
Image fit: center_crop_v1
Proof: proof_2x2_rect_v1
Jigsaw proof: proof_2x2_tabs_v1
Bleed proof: bleed_path_proof_v1

Geometry Proof

Type: proof_2x2_rect_v1
Pieces: 4
Validation: 36 / 36 checks passed
Preview size: 864 x 1118 px
Geometry SHA-256: 5a1d5eb0f95a671e382fa57b41ce8f537e0606bc9fd3ea0fa3cfd30d87f43ae3

Jigsaw Geometry Proof

Type: proof_2x2_tabs_v1
Pieces: 4
Canonical edges: 4
Validation: 103 / 103 checks passed
Flattening: 0.02 mm
Preview size: 864 x 1118 px
Geometry SHA-256: 9f068b35e1c4fc1d497447a9cf3e4cce7b575102d59bdad9c17b6d7a84c140d3

Bleed Geometry Proof

Type: bleed_path_proof_v1
Pieces: 4
Bleed: 1.5 mm
Spacing reference: bleed envelope
Validation: 46 / 46 checks passed
Offset: round, closed_polygon
Preview size: 864 x 1118 px
Bleed SHA-256: 0f0b7f7d605828194d6e7bdd75881337c0e773f504a4b95a463d59431a8de2f5

Artifacts

No exports generated

Production print files, production laser SVGs, and manufacturing output are deferred. Calibration proof downloads are available only in the proof panels above.

Notes

Private 2x2 bleed geometry proof and preview created. Print files, laser SVG, downloads, Redis enqueue, and worker processing remain deferred.
